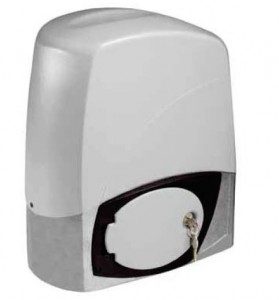

Deskripsi
Features
- Operator with encoder also in the rapid version.
- Set up for installation of magnetic limit switches and heater.
- Self-diagnosing safety devices.
- Set up for operation in case of power outage.
- Control board with terminal blocks, display and storage for up to 250 users.
- Connection used with the RSE accessory.
- Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
Measurements
Technical Specification
| MODELS | 801MS-0150 | 801MS-0180 | 801MS-0210 | 801MS-0230 | 801MS-0170 | 801MS-0200 | 801MS-0220 | 801MS-0240 | 801MS-0160 | 801MS-0190 | 801MS-0250 | 801MS-0380 | 801MS-0390 | 801MS-0570 | 801MS-0580 | 801MS-0590 | 801MS-0260 | 801MS-0270 | 801MS-0280 | 801MS-0290 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Length of leaf | 14m | 18m | 20m | 20m | 14m | 18m | 20m | 20m | 14m | 18m | 20m | 18m | 20m | 14m | 18m | 20m | 14m | 18m | 20m | 20m |
| Max Weight of leaf | 400 kg | 600 kg | 800 kg | 1000 kg | 400 kg | 600 kg | 800 kg | 1000 kg | 400 kg | 600 kg | 1000 kg | 600 kg | 1000 kg | 400 kg | 600 kg | 1000 kg | 400 kg | 600 kg | 800 kg | 1000 kg |
| Pinion Module | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Protection rating (IP) | 54 | 54 | 54 | 54 | 44 | 44 | 44 | 44 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 44 | 44 | 44 | 44 |
| Power supply (V – 50/60 Hz) | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 230 AC | 110 AC | 110 AC | 110 AC | 110 AC |
| Power supply to motor (V) | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC | 24 DC |
| Power (W) | 170 | 270 | 400 | 400 | 170 | 270 | 400 | 400 | 240 | 240 | 360 | 270 | 400 | 170 | 270 | 400 | 170 | 270 | 400 | 400 |
| Manouvering speed (m/min) | 12 | 12 | 11 MAX | 11 MAX | 12 | 12 | 11 MAX | 11 MAX | 22 | 20 | 20 | 12 | 11 MAX | 12 | 12 | 11 MAX | 12 | 12 | 11 MAX | 11 MAX |
| Duty/cycle (%) | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | – | – | – | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE |
| Cycles/Hour | – | – | – | – | – | – | – | – | – | – | – | – | – | CONTINUOUS SERVICE | CONTINUOUS SERVICE | CONTINUOUS SERVICE | – | – | – | – |
| Thrust (N) | 350 | 600 | 800 | 1000 | 350 | 600 | 800 | 1000 | 250 | 330 | 450 | 600 | 1000 | 350 | 600 | 1000 | 350 | 600 | 800 | 1000 |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |
Models
Complete automations with 24 V DC gearmotor, tested according to EN 12453 – EN 12445 standards – PLUS Version
801MS-0570
BXV04AGE – Operator with 24 V motor, featuring a control board with graphic display, Adaptive Speed & Torque Technology, CXN BUS, B1-B2 contact output, on-board radio decoding, movement management and obstacle detection for gates weighing up to 400 kg that are up to 14-m long. RAL7024-grey cover.
BXV04AGE – Operator with 24 V motor, featuring a control board with graphic display, Adaptive Speed & Torque Technology, CXN BUS, B1-B2 contact output, on-board radio decoding, movement management and obstacle detection for gates weighing up to 400 kg that are up to 14-m long. RAL7024-grey cover.
801MS-0580
BXV06AGE – Operator with 24 V motor, featuring a control board with graphic display, Adaptive Speed & Torque Technology, CXN BUS, B1-B2 contact output, on-board radio decoding, movement management and obstacle detection for gates weighing up to 600 kg that are up to 18-m long. RAL7024-grey cover.
BXV06AGE – Operator with 24 V motor, featuring a control board with graphic display, Adaptive Speed & Torque Technology, CXN BUS, B1-B2 contact output, on-board radio decoding, movement management and obstacle detection for gates weighing up to 600 kg that are up to 18-m long. RAL7024-grey cover.
Complete operators with 24 V DC gearmotor – PLUS Version
801MS-0590
BXV10AGE – Operator with 24 V motor, featuring a control board with graphic display, Adaptive Speed & Torque Technology, CXN BUS, B1-B2 contact output, on-board radio decoding, movement management and obstacle detection for gates weighing up to 1000 kg that are up to 20-m long. RAL7024-grey cover.
BXV10AGE – Operator with 24 V motor, featuring a control board with graphic display, Adaptive Speed & Torque Technology, CXN BUS, B1-B2 contact output, on-board radio decoding, movement management and obstacle detection for gates weighing up to 1000 kg that are up to 20-m long. RAL7024-grey cover.
Complete operators with 24 V DC gearmotors, tested in compliance with regulatory standards EN 12453 – EN 12445
801MS-0150
BXV04AGS – Operator with 24 V motor, featuring a control board with display on-board radio decoding, movement and obstruction detection control for sliding gates weighing up to 400 kg that are up to 14-m long. RAL7024-grey cover.
BXV04AGS – Operator with 24 V motor, featuring a control board with display on-board radio decoding, movement and obstruction detection control for sliding gates weighing up to 400 kg that are up to 14-m long. RAL7024-grey cover.
> 801MS-0180
BXV06AGS – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction-detection control for sliding gates weighing up to 600 kg that are up to 18-m long. RAL7024-grey cover.
BXV06AGS – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction-detection control for sliding gates weighing up to 600 kg that are up to 18-m long. RAL7024-grey cover.
> Complete operators with 24 V DC gearmotor
801MS-0210
BXV08AGS – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 800 kg that are up to 20-m long. RAL7024-grey cover.
BXV08AGS – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 800 kg that are up to 20-m long. RAL7024-grey cover.
801MS-0230
BXV10AGS – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 1,000 kg that are up to 20-m long. RAL7024-grey cover.
BXV10AGS – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 1,000 kg that are up to 20-m long. RAL7024-grey cover.
Complete automation with 24 V DC geared motor tested according to EN 12453 – EN 12445 – High version
801MS-0170
BXV04AGT – Automation with 24 V motor, complete with electronic board with display, built-in radio remote programming, speed control and obstacle detection for gates up to 400 kg and 14 m in length. RAL7024 grey cover – (High cover version for inbuilt battery compartment).
BXV04AGT – Automation with 24 V motor, complete with electronic board with display, built-in radio remote programming, speed control and obstacle detection for gates up to 400 kg and 14 m in length. RAL7024 grey cover – (High cover version for inbuilt battery compartment).
801MS-0200
BXV06AGT – Automation with 24 V motor, complete with electronic board with display, built-in radio remote programming, speed control and obstacle detection for gates up to 600 kg and 18 m in length. RAL7024 grey cover – (High cover version for inbuilt battery compartment).
BXV06AGT – Automation with 24 V motor, complete with electronic board with display, built-in radio remote programming, speed control and obstacle detection for gates up to 600 kg and 18 m in length. RAL7024 grey cover – (High cover version for inbuilt battery compartment).
Complete automation with 24 V DC motor – High version
801MS-0220
BXV08AGT – Automation with 24 V motor, complete with electronic board with display, built-in radio remote programming, speed control and obstacle detection for gates up to 800 kg and 20 m in length. RAL7024 grey cover – (High cover version for inbuilt battery compartment).
BXV08AGT – Automation with 24 V motor, complete with electronic board with display, built-in radio remote programming, speed control and obstacle detection for gates up to 800 kg and 20 m in length. RAL7024 grey cover – (High cover version for inbuilt battery compartment).
> 801MS-0240
BXV10AGT – Automation with 24 V motor, complete with electronic board with display, built-in radio remote programming, speed control and obstacle detection for gates up to 1000 kg and 20 m in length. RAL7024 grey cover – (High cover version for inbuilt battery compartment).
BXV10AGT – Automation with 24 V motor, complete with electronic board with display, built-in radio remote programming, speed control and obstacle detection for gates up to 1000 kg and 20 m in length. RAL7024 grey cover – (High cover version for inbuilt battery compartment).
> Complete operators with 24 V DC gearmotor – FAST Version
801MS-0160
BXV04AGF – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 400 kg that are up to 14-m long. RAL7024-gray cover (Rapid version up to 22 m/min.).
BXV04AGF – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 400 kg that are up to 14-m long. RAL7024-gray cover (Rapid version up to 22 m/min.).
801MS-0190
BXV06AGF – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 600 kg that are up to 18-m long. RAL7024-gray cover (Rapid version up to 20 m/min.).
BXV06AGF – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 600 kg that are up to 18-m long. RAL7024-gray cover (Rapid version up to 20 m/min.).
801MS-0250
BXV10AGF – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 1,000 kg that are up to 20-m long. RAL7024-gray cover (Rapid version up to 20 m/min.).
BXV10AGF – Operator with 24 V motor, featuring a control board with display, on-board radio decoding, movement and obstruction detecting device for sliding gates weighing up to 1,000 kg that are up to 20-m long. RAL7024-gray cover (Rapid version up to 20 m/min.).
Complete operators with DC 24 V gearmotor and magnetic limit switches, tested according to EN 12453 – EN 12445 standards
801MS-0380
BXV06AGM – Operator with 24 V motor, featuring a control board with display, magnetic limit-switches, on-board radio-frequency decoding, movement control and obstruction detection for sliding gates weighing up to 600 kg and measuring 18 m in length. RAL7024-gray cover.
BXV06AGM – Operator with 24 V motor, featuring a control board with display, magnetic limit-switches, on-board radio-frequency decoding, movement control and obstruction detection for sliding gates weighing up to 600 kg and measuring 18 m in length. RAL7024-gray cover.
Complete operators with 24 V DC gearmotor and magnetic limit-switches
801MS-0390
BXV10AGM – Operator with 24 V motor, featuring a control board with display, magnetic limit-switches, on-board radio-frequency decoding, movement control and obstruction detection for sliding gates weighing up to 1000 kg and measuring 20 m in length. RAL7024-gray cover.
BXV10AGM – Operator with 24 V motor, featuring a control board with display, magnetic limit-switches, on-board radio-frequency decoding, movement control and obstruction detection for sliding gates weighing up to 1000 kg and measuring 20 m in length. RAL7024-gray cover.
