Deskripsi
Flexible, Simple And Modular
The ES 80 Compact is the optimum solution for all customers who require simple assembly, low storage costs and ease of maintenance. With high quality engineering and finish the ES 80 Compact is a particularly cost-effective sliding door operator made with DORMA’s world renowned high quality and expertise.
The ES 80 Compact operator is suitable for many different applications and can be combined with all customary door profiles. lt offers a number of adjustment possibilities, has excellent operating characteristics and is easy to install and maintain.
The self-learning microprocessor controller guarantees reliable operation, ensures dynamic and smooth movements and fulfils the highest safety requirements. The setting of all parameters is carried out quickly and easily via an integrated display with push-buttons. Operation is extremely simple and menu- assisted. Additional programming equipment is not required.
Features
- Modular, flexible system
- For door units up to 2 x 80 kg
- Problem-free adaptation to individual requirements
- Low number of system components
- lndustrially prefabricated and tested
- Easy assembly of drive systems
- Multi-functional control, commissioning without programming equipment
- Easy fixing and commissioning
- Can be combined with all customary door profiles
- Reliable function and high safety standards
- Smooth movement
- Complete program at program switches
- Numerous standard connections

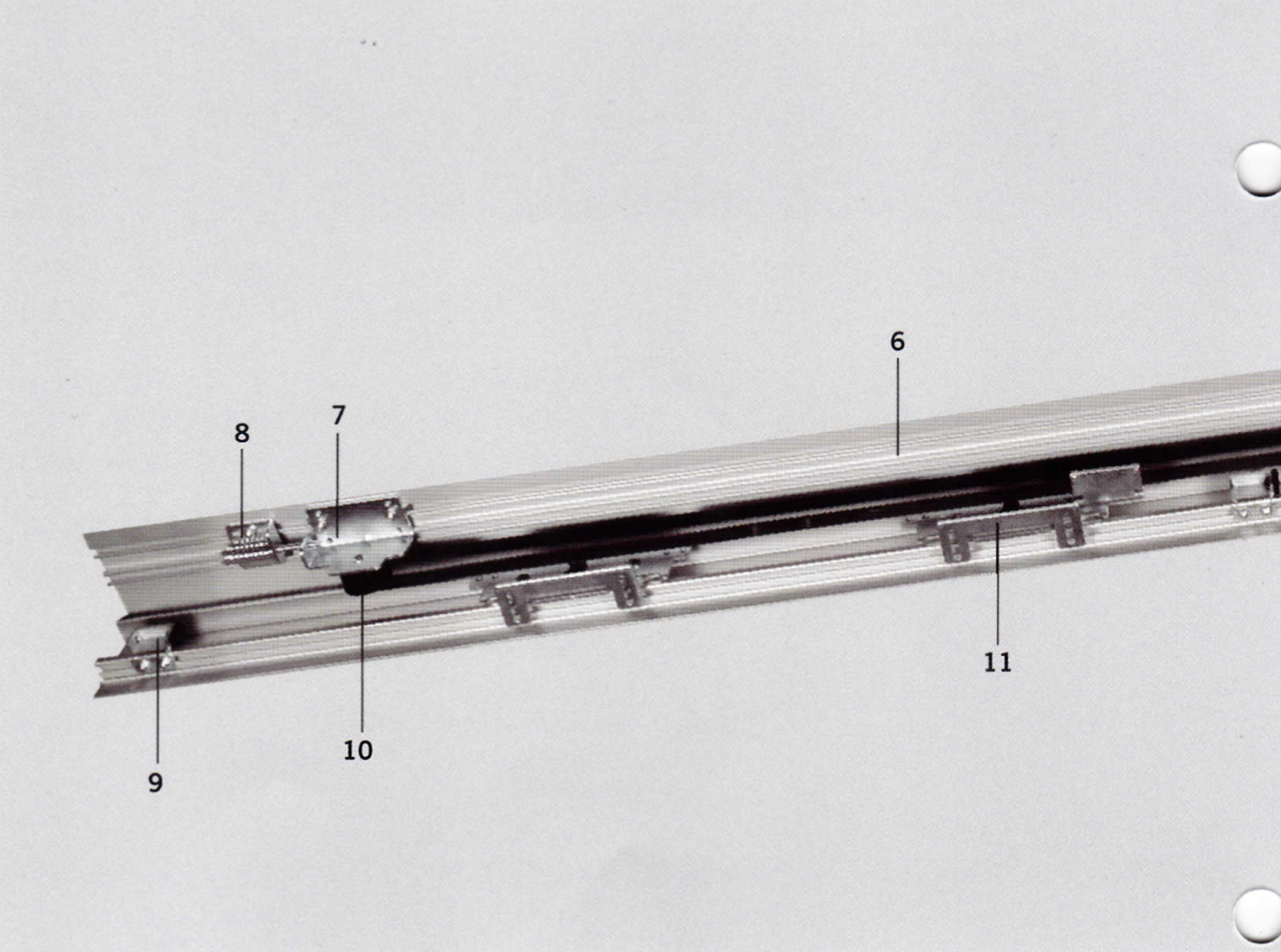

Components
Connections
Specification
Door Parameters
1 Panel Sliding Door
Transit width LW: 700 – 1100 mm
Door panel max weight: 1×100 Kg
2 Panel Sliding Door
Transit width LW: 700 – 2200 mm
Door panel max weight: 2×80 Kg
Technical Specification
Height
105 mm
Depth
115 mm
Opening Speed
10 – 50 cm/s
Closing Speed
10 – 40 cm/s
Hold Open Time
0.5 – 30 s
Voltage
230V, 50/60Hz
Power Consumption
150 Watt
IP Rating
IP20
Accessories
