GEZE ECdrive 90 Kit

Automatic linear sliding door system for doors with a leaf weight of up to 90 kg

  • Door control unit (DCU) equipped with self-learning function, helps implement intelligent operation
  • Parameter setting and troubleshooting directly on the DCU without additional service tool
  • Very smooth-running, low-wear drive solution

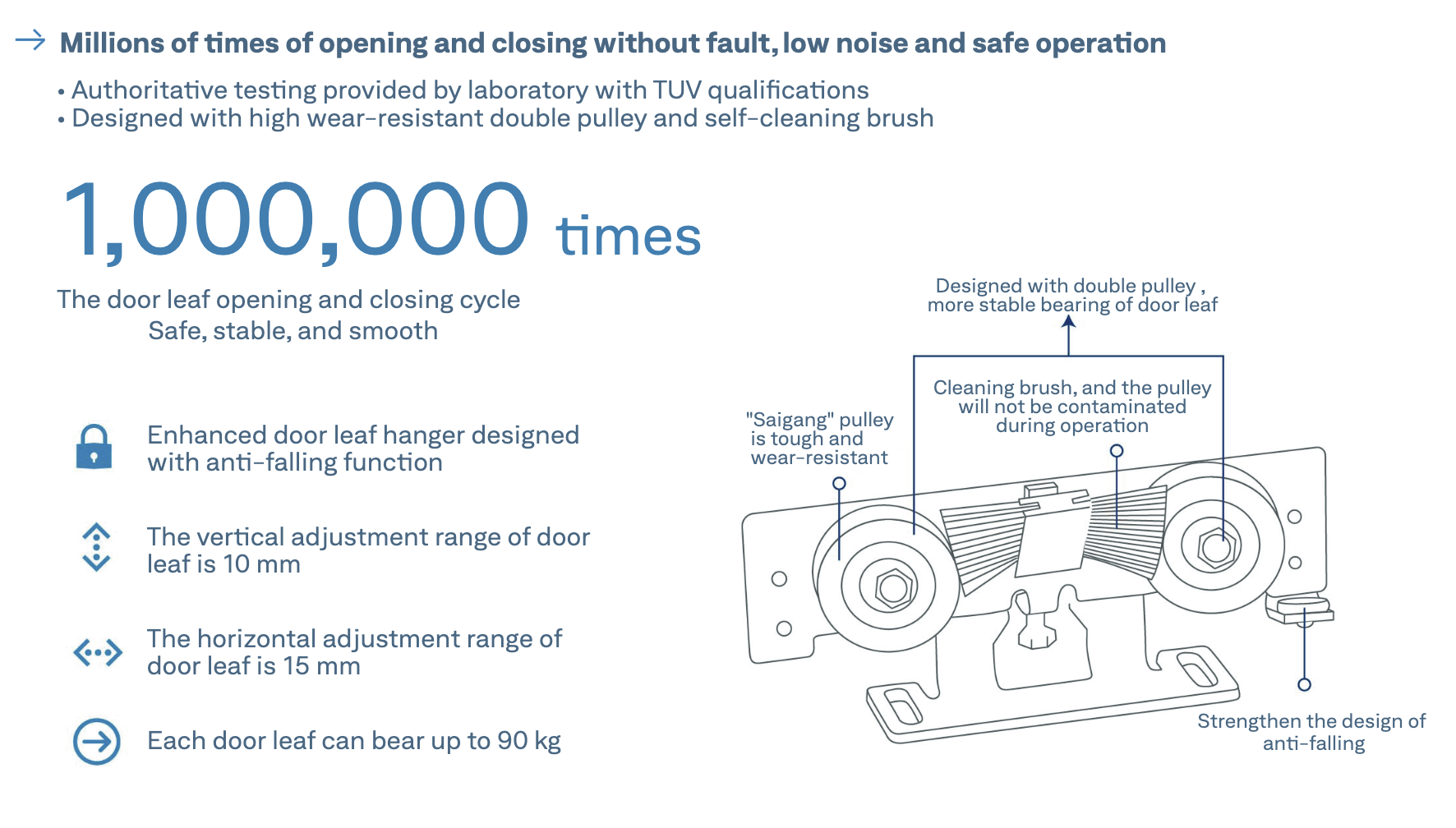

  • The roller carriage has an anti-tip function and is easy to install and adjust
  • Rechargeable battery for emergency opening and closing in case of a power failure



Kategori: ,


Application Areas

  • Single and double leaf sliding door systems
  • Interior and exterior doors with high access frequency
  • Complete solution for entrance areas with vestibule
  • Opening widths from 700 to 3000 mm possible
ecdrive90_geze ecdrive90_geze ecdrive90_geze ecdrive90_geze

Technical data

ECdrive 90 Kit
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Depth 135 mm
Leaf weight (max.) 1-leaf 90 kg
Leaf weight (max.) 2-leaf 180 kg
Opening width 1-leaf 700 mm – 3000 mm
Opening width 2-leaf 900 mm – 3000 mm
Traffic Height 3000mm (Max)
Door opening speed 0.5m/s (Max)
Duration door being open 0.5 – 60 s
Door opening and closing force Max 150N, adjustable
Working voltage 230V/50Hz
Average energy consumption on operation 150W
Service temperature -20 – 55 °C
IP rating IP20
Standard conformity EN 61000, 2011/65/EU
